安全绳施工
H-RAIL ON FLOOR
New
得益于这种水平轨道系统，绳索上的施工作业和高空作业变得更加容易和安全。与其他高空作业安全系统相比，固定在屋顶上的轨道占地面积小，因此更加美观。

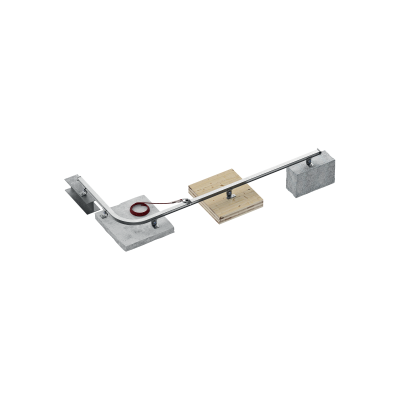

H-RAIL 适用于不同的应用场景。由于支架之间的轴距高达 6 m，因此组装所需的固定点数量有限。与其他 H-RAIL 型号相比，H-RAIL ON FLOOR 可以安装在屋顶上，并越过任何障碍（H-RAIL+TOWER）。另外，H-RAIL ON WALL 安装在墙壁上，而 H-RAIL OVERHEAD 安装在承重结构下方。
使用 H-RAIL ON FLOOR 进行绳索作业
一般来说，建筑外墙维护的操作空间非常有限。例如，在大楼窗户清洁时，保证绳索作业和相关操作员安全的解决方案具有一定缺陷。其中，最常见的是悬挂吊篮（BMU）和集成了绳索作业的水平轨道系统，例如 H-RAIL。与 BMU 不同，Rothoblaas 的 H-RAIL 系统是一种能够快速组装且安全美观的解决方案。
H-RAIL 在绳索作业中的优势
除了美观性更好、体积小、重量轻之外，H-RAIL 在安全性方面也具有优势。使用 BMU 施工时，操作员必须探身才能到达外墙，从而冒着吊篮摆动的风险，而 H-RAIL 轨道允许在悬挂状态下作业，操作员系在绳索上，并与墙壁保持正确的距离。
另外，关于绳索作业的执行速度，H-RAIL 允许 4 名操作员同时在同一跨度上工作，即使在有角度和狭窄空间的倾斜立面上，作业执行速度也更快。
与传统的柔性生命线相比，H-RAIL 刚性轨道系统的另一个优点是不会因操作员坠落而导致绳索变形，也无需计算垂直净空距离（vertical clearance）。
文件
技术数据表
|
|
|---|---|
符合性声明（DOC）
|
|
安全规程、安装和使用说明
|
|
File BIM.ifc
|
|
File BIM.rfa
|
|
符合性声明（DOC）
|
操作规程
| 安装手册 |
|---|

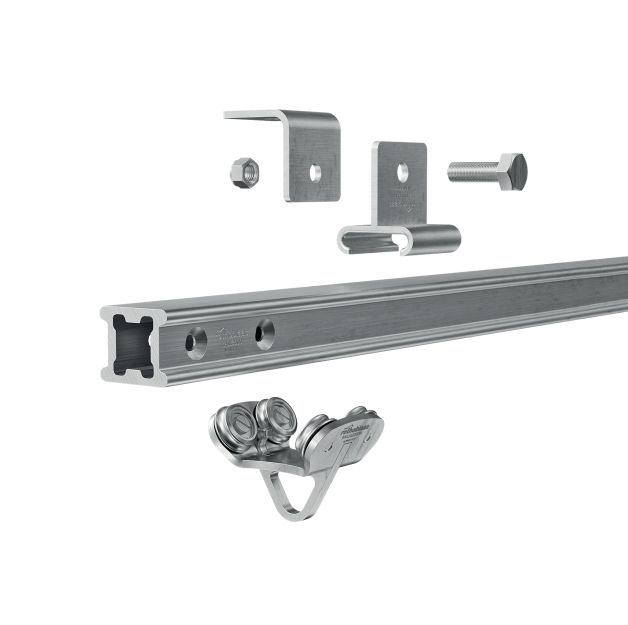

RAIL
| CODE | description | pcs. |
|---|---|---|
| RAIL3000 | 3m aluminium rail | 1 |
| RAILC90 | 90° aluminium bend for rail | 1 |
| RAILC120 | 120° aluminium bend for rail | 1 |
| RAILC135 | 135° aluminium bend for rail | 1 |
| RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
| CODE | description | pcs. |
|---|---|---|
| RAILBRAT | support element for rail | 1 |
| RAILBRAT12 | M12 plate for RAILBRAT | 1 |
| RAILBRATW | for fixing on wood | 1 |
| RAILBRAS | for direct fixing on steel | 1 |
| RAILBRAW | for direct fixing on wood/concrete | 1 |
TERMINAL ELEMENT
| CODE | description | pcs. |
|---|---|---|
| RAILEND | rail end-stop without exit | 1 |
| RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
| CODE | description | pcs. |
|---|---|---|
| RAILJUN | junction for rails and bends | 1 |
TOOL
| CODE | description | pcs. |
|---|---|---|
| RAILJUNTOOL | template for rail junction holes | 1 |
| RAILPLATE | Rail system ID plate | 1 |
FASTENING
| CODE | description | pcs. |
|---|---|---|
| RAILOCKSCREW | Lock screw | 250 |
| RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
